Submission Drawing in AutoCAD

₹199.00

In this course, you will be provided with a complete submission drawing format in AutoCAD for map approval by the municipality or panchayat.

Content:

  1. What is Submission Drawing?
  2. Carpet Area, Built-up Area, Super BUA, FSI
  3. How to create Submission Drawing
  4. Submission Drawing as per RERA

https://drive.google.com/drive/folders/1yJ094P60bMlvD-42tttWy_VCpmtIv_0Y?usp=drive_link

Category: Tag:

Description

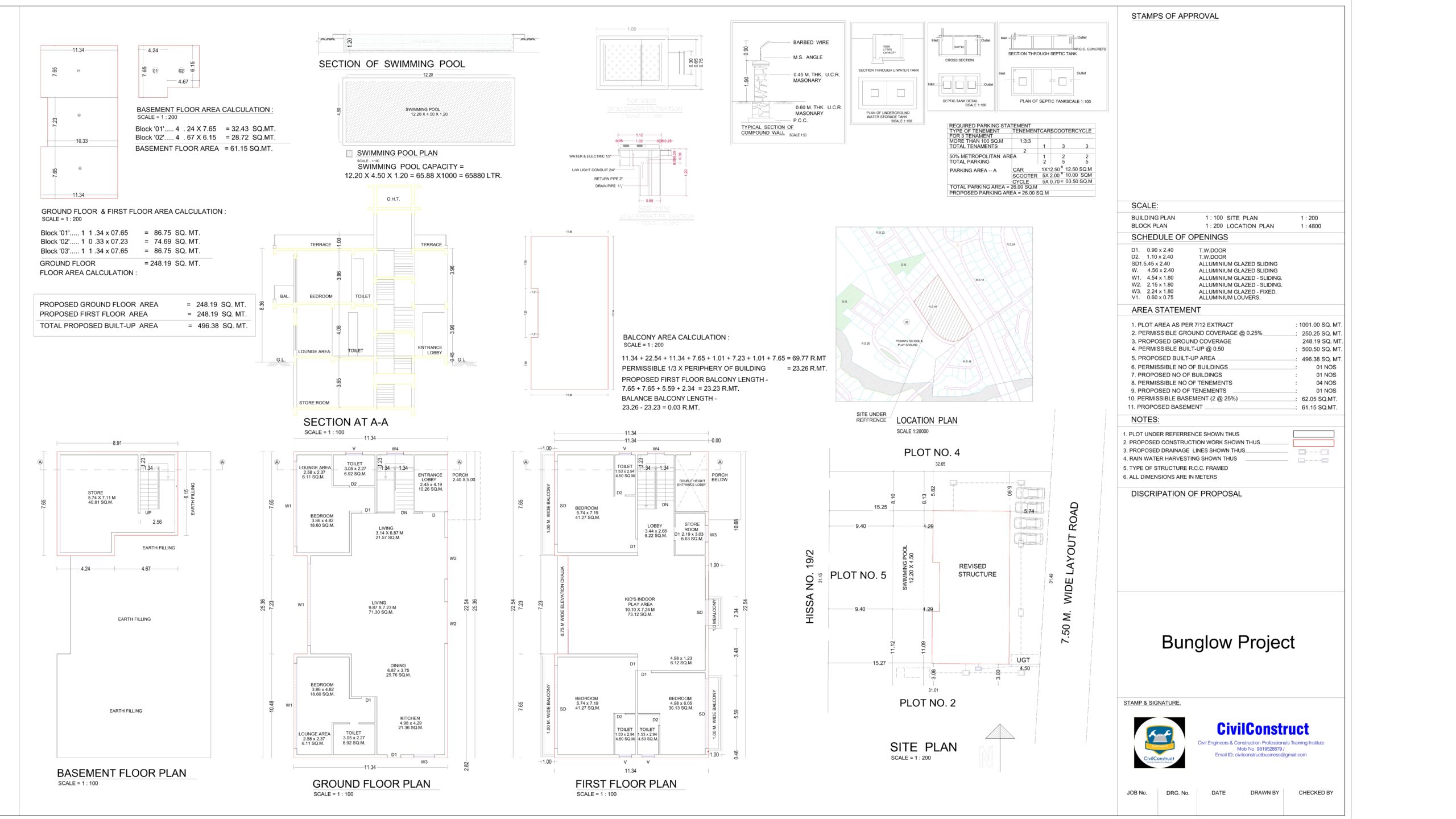

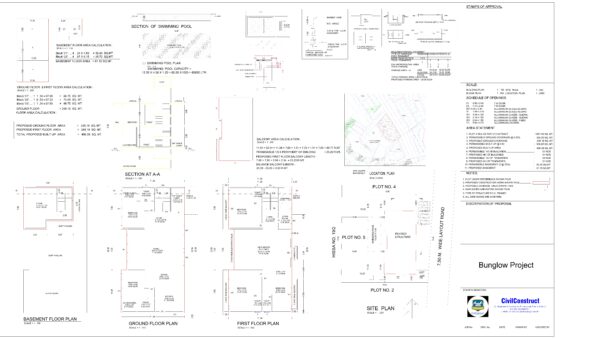

A submission/Passing drawing must contains the following items

  • All Floor Plans
  • Minimum one Section

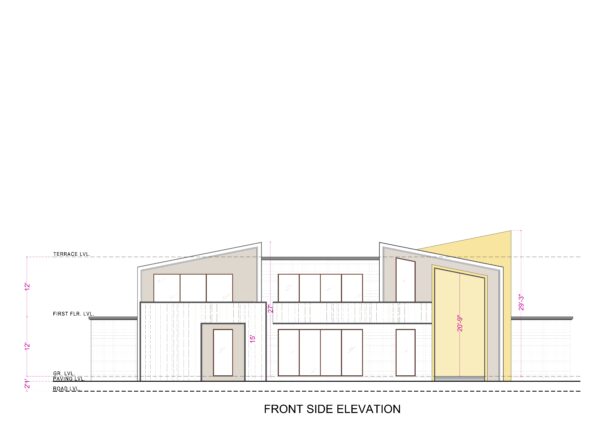

  • Minimum one elevation

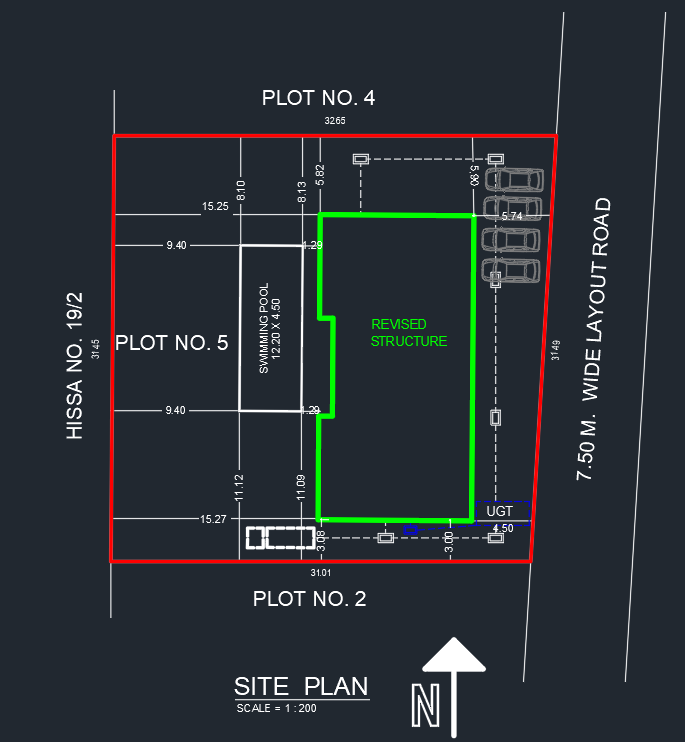

  • Site plan
  • Key Plan
  • North Direction
  • Built up Area Calculations
  • F.S.I. Area Calculations
  • Parking Calculations
  • Schedule of Openings
  • Area Statement
  • Project Title
